DCFx系列全干式光缆
- 规格:
- 尺寸:
- 产地:
- 价格:
- 优惠价:
- 包装:
DCFx系列全干式光缆
- 作者：[!--writer--]
- 时间：[!--newstime--]
- 来源：[!--befrom--]
- 阅读量：次
- 产品描述
- 产品特点
- 产品应用
- 产品标准

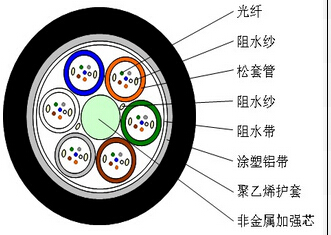

- 结构参数
- 光学特性
GYFx®系列全干式光缆GYFY、GYFA、GYFS、GYFY53、GYFA53，是长飞光纤光缆（上海）有限公司在传统油膏填充式光缆基础上开发的一种新型光缆。采用特种阻水纱、阻水带等干式材料，取代了传统的纤膏、缆膏，完成了松套管和缆芯的阻水功能，是一种安全、高效的全干式阻水方式。
作为国内首次开发出此类全干式光缆的厂家，长飞（上海）公司已为该系列产品申请获得专利。
YOFC(SH) GYFx® series Totally Dry Cable, including GYFY, GYFA, GYFS, GYFY53, GYFA53, is a newly developed product on the basis of traditional gel filling optical fiber cable. Special dry materials such as water-blocking yarn and water-blocking tape are substitute for the gel filling to achieve the water-blocking purpose. Not only the cable core, but also the loose tube can completely prevent water from ingress. It is proved to be a reliable and effective method.
As the originally inventor of this Totally Dry Cable in
l 光缆接续前无需清除油膏和清洁光纤，提高安装效率，减少安装费用；
No need to remove messy gel and clean the fibers before splice, increase installation efficiency and save the expense.
l 光缆重量轻，方便敷设与维护，降低施工成本；
Light cable weight, be convenient for the installation and maintenance, and reduce construction cost.
l 由于没有使用油膏，避免造成环境污染和人体损害；
Gel free, avoid environment pollution and do no harm to human body.
l 干式阻水材料与光纤、光缆各组件具有更好的相容性；
Dry water-blocking materials are compatible with the optical fiber and each components of the cable.
l 非金属加强芯使光缆有效用于雷电频繁和存在干扰电流的场所;
All dielectric strength member ensure the cable be applied in the area of frequent thunder and current interference.
l 生产工艺和过程相对简单，可降低光缆的生产成本；
Simplify the production process, reduce the cable manufacture cost.
可广泛应用于核心网、接入网和光纤到户，敷设方式有管道、架空、直埋等。
Adopted to core network, access network and fiber to the home. Cable laying methods: duct, aerial and direct buried.
产品标准 Standards
长飞（上海）公司GYFx®系列全干式光缆通过了阻水性能、机械性能、环境性能等各项试验，符合YD/T 901-2001 和IEC60794-1标准。
YOFC(SH) GYFx® series cable meet the requirements of water-blocking characteristic, mechanical characteristic and environment characteristic of Standard YD/T 901-2001 as well as IEC 60794-1.
光缆型号 Cable Type （以2纤递增） (Increased by 2 fibers) |
光纤数 Fiber Count |
套管数 Tubes |
填充绳数 Fillers |
光缆直径 Cable Diameter mm |
光缆重量 Cable Weight kg/km |
允许拉伸力 Tensile Strength 长期/短期 Long/Short Term N |
允许压扁力 Crush Resistance 长期/短期 Long/Short Term N/100mm |
弯曲半径 Bending Radius 静态/动态 Static/Dynamic mm |
|
GYFA-2~6Xn |
2~6 |
1 |
5 |
11.8 |
96 |
400/1000 |
300/1000 |
10D/20D |
|
GYFA-8~12Xn |
8~12 |
2 |
4 |
11.8 |
96 |
400/1000 |
300/1000 |
10D/20D |
|
GYFA-14~18Xn |
14~18 |
3 |
3 |
11.8 |
96 |
400/1000 |
300/1000 |
10D/20D |
|
GYFA-20~24Xn |
20~24 |
4 |
2 |
11.8 |
96 |
400/1000 |
300/1000 |
10D/20D |
|
GYFA-26~30Xn |
26~30 |
5 |
1 |
11.8 |
96 |
400/1000 |
300/1000 |
10D/20D |
|
GYFA-32~36Xn |
32~36 |
6 |
0 |
11.8 |
96 |
400/1000 |
300/1000 |
10D/20D |
|
|
|
|
G.652 |
G.655 |
50/125 µm |
62.5/125 µm |
|
|
|
|
|
|
|
|
|
衰减 Attenuation（+20℃） |
@ 850 nm |
|
|
|
≤ 3.0 dB/km |
≤ 3.0 dB/km |
|
@1300 nm |
|
|
|
≤ 1.0 dB/km |
≤ 1.0 dB/km |
|
|
@1310 nm |
|
≤ 0.36 dB/km |
≤ 0.40 dB/km |
|
|
|
|
@1550 nm |
|
≤ 0.22 dB/km |
≤ 0.23 dB/km |
|
|
|
|
带宽（A级） Bandwidth（Class A） |
@ 850 nm |
|
|
|
≥ 500 MHz·km |
≥ 200 MHz·km |
|
@1300 nm |
|
|
|
≥ 1000 MHz·km |
≥ 600 MHz·km |
|
|
数值孔径 Numerical Aperture |
|
|
|
0.200 ± 0.015 NA |
0.275 ± 0.015 NA |
|
|
光缆截止波长Cable Cut-off Wavelength lcc |
|
≤ 1260 nm |
≤ 1480 nm |
|
|
|
